Is concave soundboard normal?
I bought a used oud. I'm new to the world of ouds, and was told by the seller that some soundboard curvature is normal over time.
When I place a straight edge on the soundboard, so that it makes contact near the bridge, and at the place where the neck meets the body, I find that
the middle of the soundboard is curved 5mm away from the straight edge.
Is this really typical? If not, how can I repair it?
Any advice would be appreciated.
|
|
|
Greg
Administrator
Posts: 926
Registered: 7-22-2004
Location: Brisbane, Australia
Member Is Offline
Mood: Serene
|
|
Hello Alex,
Welcome to the forums. Yes, it is normal for there to be a small distortion. 5mm would be around the maximum I would be comfortable with. But I play a
Turkish sized oud and they tend to distort less than some Arabic sized ouds. An important measurement at this stage of proceedings is the height of
the strings above the fingerboard, where the neck meets the body. What does that measure?
Regards,
Greg
|
|
|
alexoud
Oud Admirer
Posts: 3
Registered: 4-23-2012
Member Is Offline
|
|
Hi Greg,
The height of the strings where the neck meets the body is 3.5mm for the high string and 3.0mm for the low string.
The other thing that seems a little bit odd to me is that because of the concavity of the soundboard the part of the fingerboard that rests on the
soundboard is at a slightly different angle than the fingerboard of the neck.
Let me know if a picture would help to explain what I mean.
Thanks,
Alex
|
|
|
bulerias1981
Oud Junkie
Posts: 763
Registered: 4-26-2009
Location: Beacon, NY
Member Is Offline
Mood: John Vergara Luthier Lord of the Strings instrument making and repair
|
|
Concave soundboard is something makers do intentionally, and is also something that may happen over time. I prefer a slight "dip" in the soundboard at
the center for a couple reasons. For a fixed bridge, the oud would be under less stress, and its less likely to receive buzzing on the fingerboard
past the neck joint. There are a couple ways to makers to render the top convex. You'll have a problem if the opposite geometry occurs.. such as a
convex top.. which it bulges UP. That is an oud under stress and a failure in construction of the face.
|
|
|
alexoud
Oud Admirer
Posts: 3
Registered: 4-23-2012
Member Is Offline
|
|
It sounds like the things that I was noticing are fairly typical. Thank you both very much!
|
|
|
Greg
Administrator
Posts: 926
Registered: 7-22-2004
Location: Brisbane, Australia
Member Is Offline
Mood: Serene
|
|
Quote: Originally posted by alexoud  | Hi Greg,
The height of the strings where the neck meets the body is 3.5mm for the high string and 3.0mm for the low string.
[snip]
Thanks,
Alex |
That sounds fine to me Alex. Enjoy your playing.
Greg
|
|
|
Dr. Oud
Oud Junkie
Posts: 1370
Registered: 12-18-2002
Location: Sacramento, CA, USA
Member Is Offline
Mood: better than before
|
|
The face is intentionally built concave to avoid it bulging or bowing up. All Turkish ouds use this feature, but not all Arabic ouds. If the face is
built perfectly flat, the torsion of the fixed bridge will twist the face between the braces. The next brace forward then becomes a pivot point, which
causes the face to bow upwards between the next braces, just under the center sound hole. This distortion can interfere with the vibration amplitude
of the strings causing rattling or buzzing. When the face is built with an depression or concave, this condition is avoided. The concave face can be
achieved by either trimming the sides down or shaping the braces.
|
|
|
jdowning
Oud Junkie
Posts: 3485
Registered: 8-2-2006
Location: Ontario, Canada
Member Is Offline
Mood: No Mood
|
|

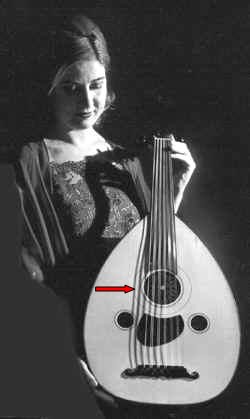

This portrait of Turkish oud player Dr Gülçin YAHYA KAÇAR illustrates the sound board profile of her oud quite well.
The lighting casts a shadow of the 6th course on the sound board which - if the sound board was perfectly flat - would appear to be a straight line.
Instead - to judge by the shadow - the fingerboard slopes slightly downwards from the neck joint to the top edge of the main sound hole. Across the
sound holes the sound board is more or less flat and then curves up to the bridge.
|
|
|
Ararat66
Oud Junkie
Posts: 1025
Registered: 11-14-2005
Location: Portsmouth, UK
Member Is Offline
Mood: mellow yellow
|
|

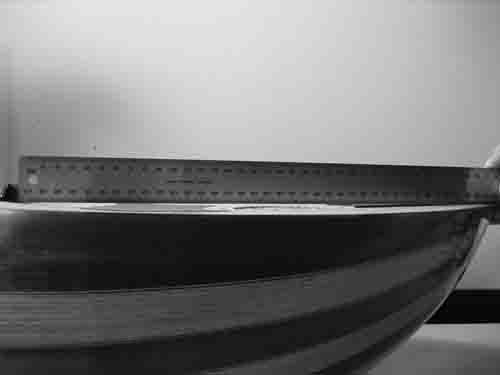

My Tasos Theodorakis oud based on Manol, is the same and this 'dip' is consistent with the side of the bowl so if you place a straight edge from one
side to the other it is flat across the oud but curved longitudinally.
Leon
|
|
|
