Author: Subject: Hana Nahhat 1910 Restoration
Dr. Oud
Oud Junkie
*****




Posts: 1357
Registered: 12-18-2002
Location: Sacramento, CA, USA
Member Is Offline

Mood: better than before

[*] posted on 10-10-2012 at 08:52 PM
Hana Nahhat 1910 Restoration


This project started with 2 missing ribs, no face at all and a broken peg box. The soundboard is using German spruce bought from Vitali Imports in LA in 1968, when it was already 10 years old. The braces were gleaned from the back supports of a 100 year old upright piano. I hope it sounds as good as it looks...so far so good.

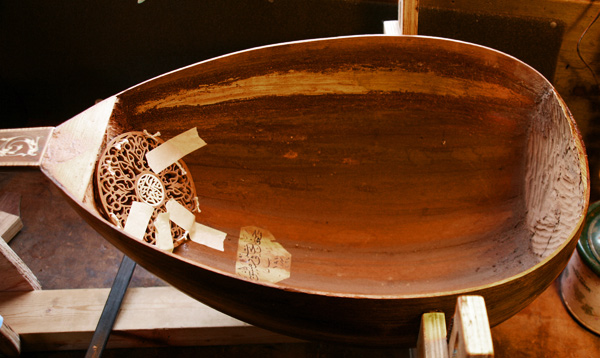

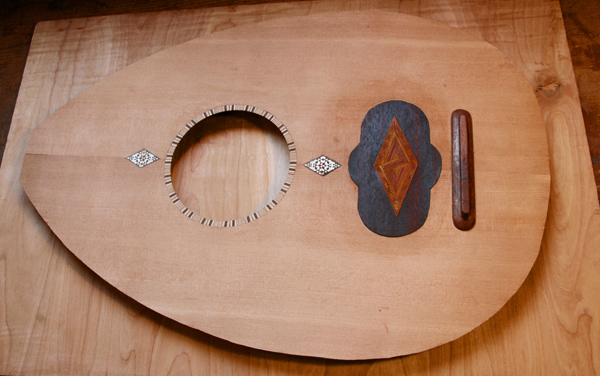

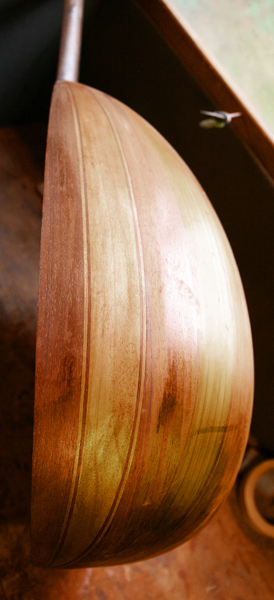

label.jpg - 110kB body-inside.jpg - 103kB outside.jpg - 103kB face.jpg - 106kB




View user's profile Visit user's homepage View All Posts By User
Alfaraby
Oud Junkie
*****




Posts: 799
Registered: 9-18-2009
Location: Holy Land
Member Is Offline

Mood: Cool

[*] posted on 10-11-2012 at 02:49 PM


The label:

"Hanna Nahat Work in Damascus, Syria (April 11, 1910) No. 294"

Looks like a hand-written original label .
Non-solved mystery: Hanna was a part of Nahat Bro. at that time. How come he managed to make 294 ouds back in 1910 ?
Well, I think I know nothing about Nahat legacy & I'm pretty serious.

Hard work you still have to do, Doc.
Good luck

Yours indeed
Alfaraby




alfarabymusic@gmail.com
View user's profile View All Posts By User
Yaron Naor
Oud Junkie
*****




Posts: 273
Registered: 1-24-2009
Location: Bat Hefer, Israel
Member Is Offline

Mood: Happy

[*] posted on 10-14-2012 at 04:32 AM


Very nice Oud and project - looking foreword to it's finished...
Yaron Naor




View user's profile Visit user's homepage View All Posts By User
jdowning
Oud Junkie
*****




Posts: 3440
Registered: 8-2-2006
Location: Ontario, Canada
Member Is Offline

Mood: No Mood

[*] posted on 10-14-2012 at 06:03 AM


Interesting to see the carved out neck and end blocks. This would seem to allow a greater surface reinforcement area of the ribs without increasing weight or reducing bowl volume or adding significantly to the joint surface area below the bridge?
How does the neck block carving look Richard? Could you post images for information?

Good luck with the rebuild
View user's profile View All Posts By User
Dr. Oud
Oud Junkie
*****




Posts: 1357
Registered: 12-18-2002
Location: Sacramento, CA, USA
Member Is Offline

Mood: better than before

[*] posted on 10-16-2012 at 07:40 AM


The neck and tail blocks are larger than usual, and the scooping out is left with the gouge tool marks, not smoothed out at all. I believe it was done to maximize the volume of the bowel for added bass reflex, as well as to provide more support surface area both for the ribs and the soundboard. Another benefit is to reduce the overall weight of the oud. There is more surface to support the soundboard below the bridge at the tail block which may be the most advantageous characteristic. As the face is directly attached to a wider surface of the tail block, a larger area of the soundboard would be excited by the torsion of the bridge, rather than dissipating in the unsupported area outside the tail block surface.
I am not able to provide a detail photo of the interior as I just glued the face on.




View user's profile Visit user's homepage View All Posts By User
Dr. Oud
Oud Junkie
*****




Posts: 1357
Registered: 12-18-2002
Location: Sacramento, CA, USA
Member Is Offline

Mood: better than before

[*] posted on 10-29-2012 at 03:33 PM

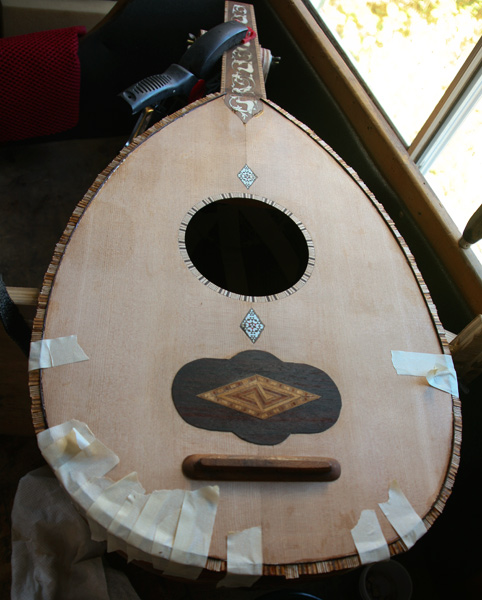

face mounted, beard and tiles installed, almost ready for string test! I'm quivering with anticipation!

tiles.jpg - 108kB




View user's profile Visit user's homepage View All Posts By User
Mehran
Oud Junkie
*****




Posts: 210
Registered: 4-27-2006
Member Is Offline


[*] posted on 10-31-2012 at 03:44 PM


Looking good!
View user's profile View All Posts By User
animalwithin
Oud Maniac
****




Posts: 68
Registered: 11-5-2011
Location: Los Angeles, California
Member Is Offline


[*] posted on 11-6-2012 at 09:35 AM


My gosh that turned out incredible, more pics!!!
View user's profile View All Posts By User
abusin
Oud Junkie
*****




Posts: 442
Registered: 3-23-2006
Location: Manchester England
Member Is Offline

Mood: Ya Fuadi La Tasal

[*] posted on 11-7-2012 at 03:29 AM



outstanding job Doc
can't wait for a sound file :bounce:




Best Regards

Awad
View user's profile View All Posts By User
Dr. Oud
Oud Junkie
*****




Posts: 1357
Registered: 12-18-2002
Location: Sacramento, CA, USA
Member Is Offline

Mood: better than before

[*] posted on 11-11-2012 at 08:46 AM


First strings installed, yet unfinished. After the strings stretch in I'll make a sound file for y'all (it sounds scary good so far)

[file]24733[/file]




View user's profile Visit user's homepage View All Posts By User
rex2009
Oud Maniac
****




Posts: 73
Registered: 1-12-2009
Location: UK
Member Is Offline

Mood: Oud Zone

[*] posted on 11-26-2012 at 10:13 AM


Awaiting the sound file Doc :bounce::D
View user's profile View All Posts By User
Dr. Oud
Oud Junkie
*****




Posts: 1357
Registered: 12-18-2002
Location: Sacramento, CA, USA
Member Is Offline

Mood: better than before

[*] posted on 11-27-2012 at 06:00 PM


I am applying the finish now, the sound file will have to wait until it's done. It'll be worth the wait, believe me...this oud is amazing.



View user's profile Visit user's homepage View All Posts By User
rex2009
Oud Maniac
****




Posts: 73
Registered: 1-12-2009
Location: UK
Member Is Offline

Mood: Oud Zone

[*] posted on 12-5-2012 at 11:20 AM


still waiting for the sound file.:D
View user's profile View All Posts By User
Dr. Oud
Oud Junkie
*****




Posts: 1357
Registered: 12-18-2002
Location: Sacramento, CA, USA
Member Is Offline

Mood: better than before

[*] posted on 12-7-2012 at 05:38 PM


Here's the finished pics. After the strings stretch in I'll post a sound file.





[file]25114[/file]



[file]25120[/file]

[file]25122[/file]




View user's profile Visit user's homepage View All Posts By User
Jody Stecher
Oud Junkie
*****




Posts: 1161
Registered: 11-5-2011
Location: California
Member Is Offline


[*] posted on 12-7-2012 at 10:01 PM


Beautiful!
View user's profile View All Posts By User
rex2009
Oud Maniac
****




Posts: 73
Registered: 1-12-2009
Location: UK
Member Is Offline

Mood: Oud Zone

[*] posted on 12-10-2012 at 01:34 PM


Looking good:bounce:
View user's profile View All Posts By User
Dr. Oud
Oud Junkie
*****




Posts: 1357
Registered: 12-18-2002
Location: Sacramento, CA, USA
Member Is Offline

Mood: better than before

[*] posted on 12-15-2012 at 09:23 PM


http://www.youtube.com/watch?v=0gY9CHWRdjU&feature=share&li...



View user's profile Visit user's homepage View All Posts By User
Sasha
Oud Maniac
****




Posts: 95
Registered: 1-12-2003
Location: San Diego, California
Member Is Offline

Mood: No Mood.

[*] posted on 12-15-2012 at 10:28 PM



Sounds amazing! Nicely done - especially considering what rough shape the old girl was in when she came under your expert care...
View user's profile View All Posts By User
Dr. Oud
Oud Junkie
*****




Posts: 1357
Registered: 12-18-2002
Location: Sacramento, CA, USA
Member Is Offline

Mood: better than before

[*] posted on 12-19-2012 at 04:51 PM


Quote: Originally posted by Alfaraby
The label:

"Hanna Nahat Work in Damascus, Syria (April 11, 1910) No. 294"

Looks like a hand-written original label .
Non-solved mystery: Hanna was a part of Nahat Bro. at that time. How come he managed to make 294 ouds back in 1910 ?.....

Yours indeed
Alfaraby


I think it may be his 294th oud altogether. 294 ouds in one year? that's almost one a day...I don't think so. He started around 1900, right? So 294 is about 30 ouds/year. still pretty good numbers, but at least realistic. Maybe the number doesn't mean anything really, just a joke on us?




View user's profile Visit user's homepage View All Posts By User
Mehran
Oud Junkie
*****




Posts: 210
Registered: 4-27-2006
Member Is Offline


[*] posted on 12-19-2012 at 04:53 PM


Great work Doc!
