Author: Subject: Removing pickguard (wood veneer)
Maan
Oud Lover
**




Posts: 22
Registered: 5-24-2016
Member Is Offline


[*] posted on 4-2-2017 at 06:11 PM
Removing pickguard (wood veneer)


What would be the best method to removing a wood veneer pickguard from an unfinished spruce soundboard? I am thinking carefully working a sharp chissel underneath. Would love to hear some thoughts, tips or experiences.

Maan
View user's profile View All Posts By User
Brian Prunka
Oud Junkie
*****




Posts: 2554
Registered: 1-30-2004
Location: Brooklyn, NY
Member Is Offline

Mood: Stringish

[*] posted on 4-2-2017 at 08:08 PM


I'm not sure how to do it, but that sounds like the wrong way.

View user's profile Visit user's homepage View All Posts By User
SamirCanada
Moderator
******




Posts: 3344
Registered: 6-4-2004
Member Is Offline


[*] posted on 4-3-2017 at 05:53 AM


yes wrong... chisel will dig into the spruce top.

take a clothing iron and a slightly moistened paper tower on the pickguard, press the iron on the towel and steam/heat the pickguard.

use thin steel spatula like the one to spread cake icing or something to even out drywall. slide it under the pickguard and move it around to loosen the glue.




@samiroud Instagram
samiroudmaker@gmail.com
View user's profile View All Posts By User
Matthias
Oud Junkie
*****




Posts: 473
Registered: 1-24-2007
Location: Badenweiler, Germany
Member Is Offline

Mood: No Mood

[*] posted on 4-3-2017 at 08:08 AM


the main question is, which glue is used:
-- skin glue
--> best to remove
-- modern glue like titebond
--> a bit more difficult, needs longer to swell
-- superglue
--> will be a problem

For the first 2 options I would plce a slightly wet cloth over the pickguard which should have the same size and which will be covered with a plastic and would leave this for 1 day. So both glue will swell and in the best case you only have to go with a spatula between pickguard and soundboard and can separate them.
I always avoid using a hot iron contacting the soundboard, as this is dangerous. In this case the iron is bigger than the pickguard and you have the risk to touch the soundboard with it, and also you probably make the soundboard hot and try with the risk of cracks.

In case of superglue, you can only sand off the pickguard.

Best regards

Matthias





Matthias Wagner
lutes - ouds - guitars & music-strings onlineshop
http://www.lutes-strings.de ( instruments )
http://www.music-strings.de ( strings )
http://www.facebook.com/Matth.Wagner
+++++++++++++++++++++++++++++++++++++++
+ 9th Oriental music-summeracademy 1.8. - 4. 8. 2019
+ http://www.oriental-music-summeracademy.de
+ https://www.youtube.com/channel/UC4WC3bzeF38yuVfMGB8T1Vg/videos
+++++++++++++++++++++++++++++++++++++++
View user's profile Visit user's homepage View All Posts By User
Maan
Oud Lover
**




Posts: 22
Registered: 5-24-2016
Member Is Offline


[*] posted on 4-5-2017 at 03:53 PM

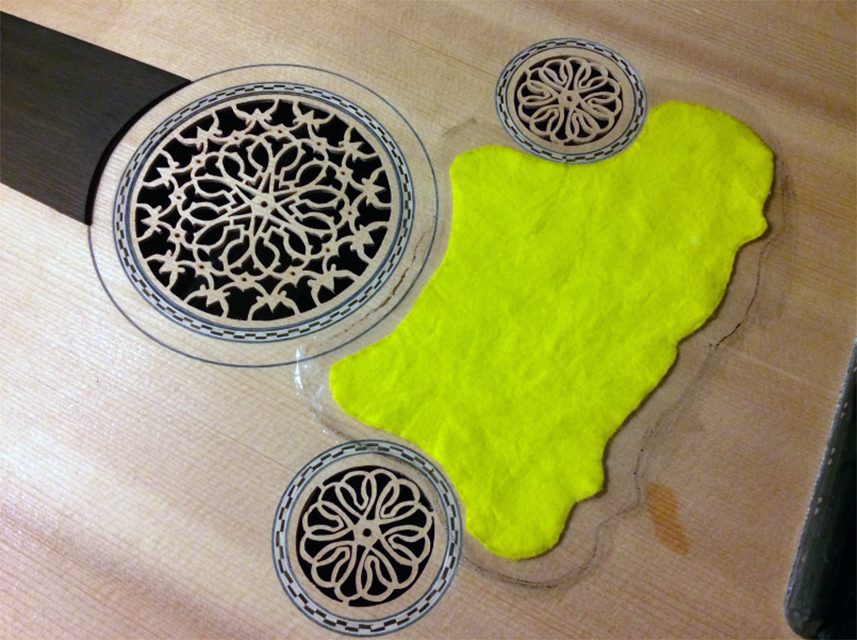

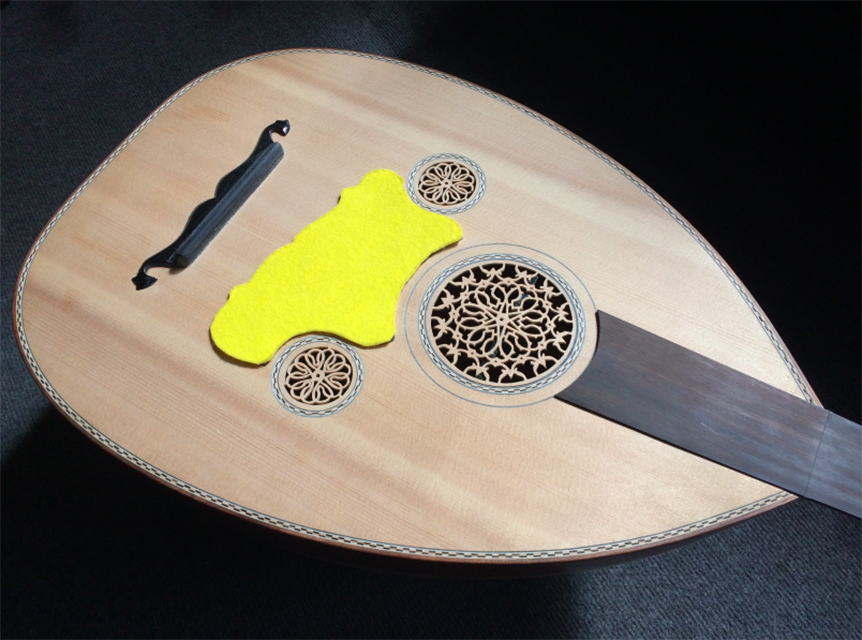

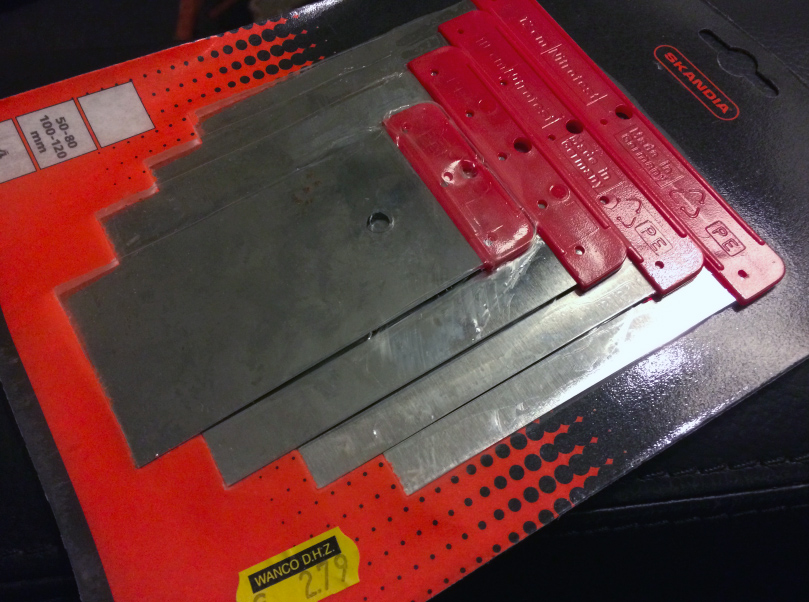

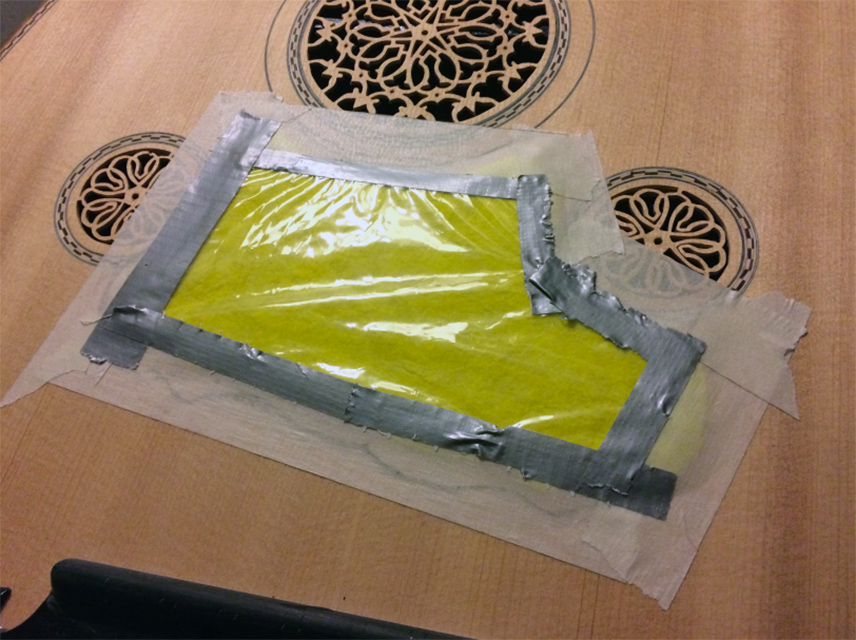

Thanks for the great information guys, very much appreciated! Trying Matthias his method first, if heat is required after the 24h damp cloth I will carefully press a heating iron on the thick sponge-cloth. Posting detailed photo's of every step I make here for other tinkerers.

r3.jpg - 394kB r2.jpg - 378kB r1.jpg - 373kB r4.jpg - 350kB r6.jpg - 307kB r7.jpg - 298kB
View user's profile View All Posts By User
SamirCanada
Moderator
******




Posts: 3344
Registered: 6-4-2004
Member Is Offline


[*] posted on 4-6-2017 at 06:24 AM


that's a great trick.. I am sure it will work fine for hide glue.



@samiroud Instagram
samiroudmaker@gmail.com
View user's profile View All Posts By User
Matthias
Oud Junkie
*****




Posts: 473
Registered: 1-24-2007
Location: Badenweiler, Germany
Member Is Offline

Mood: No Mood

[*] posted on 4-6-2017 at 08:30 AM


And its important to make it not too wet. Important is the time and not the quantity of water or heat the hide glue gets to swell ( and also it will work with Titebond ) .
Matthias




Matthias Wagner
lutes - ouds - guitars & music-strings onlineshop
http://www.lutes-strings.de ( instruments )
http://www.music-strings.de ( strings )
http://www.facebook.com/Matth.Wagner
+++++++++++++++++++++++++++++++++++++++
+ 9th Oriental music-summeracademy 1.8. - 4. 8. 2019
+ http://www.oriental-music-summeracademy.de
+ https://www.youtube.com/channel/UC4WC3bzeF38yuVfMGB8T1Vg/videos
+++++++++++++++++++++++++++++++++++++++
View user's profile Visit user's homepage View All Posts By User
Maan
Oud Lover
**




Posts: 22
Registered: 5-24-2016
Member Is Offline


[*] posted on 4-7-2017 at 02:41 PM


It's on there for 48 hours now. Will extra giving it more time (until tomorrow morning with better light) help or will it start drying out the glue again after more than 1 day as you first suggested?

Manuel
View user's profile View All Posts By User
Matthias
Oud Junkie
*****




Posts: 473
Registered: 1-24-2007
Location: Badenweiler, Germany
Member Is Offline

Mood: No Mood

[*] posted on 4-8-2017 at 04:30 AM


Quote: Originally posted by Maan
It's on there for 48 hours now. Will extra giving it more time (until tomorrow morning with better light) help or will it start drying out the glue again after more than 1 day as you first suggested?

Manuel


Hello,

that indicates it is not natural glue, it probably will be titebond or superglue, which will be the worst case. This cannot be removed with water and heat. It must be sanded off.

Matthias




Matthias Wagner
lutes - ouds - guitars & music-strings onlineshop
http://www.lutes-strings.de ( instruments )
http://www.music-strings.de ( strings )
http://www.facebook.com/Matth.Wagner
+++++++++++++++++++++++++++++++++++++++
+ 9th Oriental music-summeracademy 1.8. - 4. 8. 2019
+ http://www.oriental-music-summeracademy.de
+ https://www.youtube.com/channel/UC4WC3bzeF38yuVfMGB8T1Vg/videos
+++++++++++++++++++++++++++++++++++++++
View user's profile Visit user's homepage View All Posts By User
Maan
Oud Lover
**




Posts: 22
Registered: 5-24-2016
Member Is Offline


[*] posted on 4-8-2017 at 05:00 AM


I had not checked it yesterday when I wrote that, but I did this morning! The wood veneer had started 'bulging' slightly in some parts and the glue on the edge of the pickgaurd that was sticking out (brown tinted) was soft and could be scraped away easy around the edge. Getting anything underneath the edge was however not possible yet.

I put it on again after dampening the cloth a second time to see if 1 extra day will help. I don't think this is Superglue. It is a Sandi oud, not sure what glue they use, I will contact them while I wait.

Keep you posted.
Manuel
