Jameel
Oud Junkie
Posts: 1672
Registered: 12-5-2002
Member Is Offline
Mood: No Mood
|
|
Thanks everybody! This oud is taking me way longer than I had planned. I recently made some changes to my workshop, and am just finishing it up, so
I'll be able to work on Mike's oud more regularly. In fact, I just did some work on it yesterday afternoon. Nothing worth shooting, but I'm making
some progress. I'm hoping to have this oud done by late February, when Simon Shaheen is scheduled for a concert in my area. He's supposed to be here
for three days doing workshops and lectures, so I may have some video to share with this oud being played by him. That would be fun. I'm also hoping
that Brian will be performing with Shaheen, so I can get his much-valued impressions of it as well.
P.S. Here's a little picture from today's midwest ice storm. We were without power for about 6 hours. I watched at least 4 trees, one of them about
18" in diameter, come crashing down in the woods behind my house. The wind is supposed to pick up tonight, so if you all never hear from me again,
you'll know one of these giants came through the roof! I have my ouds in hard cases tonight....
|
|
|
SamirCanada
Moderator
Posts: 3404
Registered: 6-4-2004
Member Is Offline
|
|
I love ice storms.
in 1997 we had the biggest one in a while and we had no school for 2 months. right after xmas too!
that was the best.
|
|
|
Melbourne
Oud Junkie
Posts: 354
Registered: 10-9-2006
Location: Mlebourne, Australia
Member Is Offline
Mood: راحة الأرواح
|
|
All danger aside, at least you guys get to have a white Christmas on the other side. We never have a white Christmas
Beautiful photo Jameel - not to mention the oud...
|
|
|
Mike
Super Administrator
Posts: 1568
Registered: 12-3-2002
Location: California, USA
Member Is Offline
Mood: Happy
|
|
Getting close...

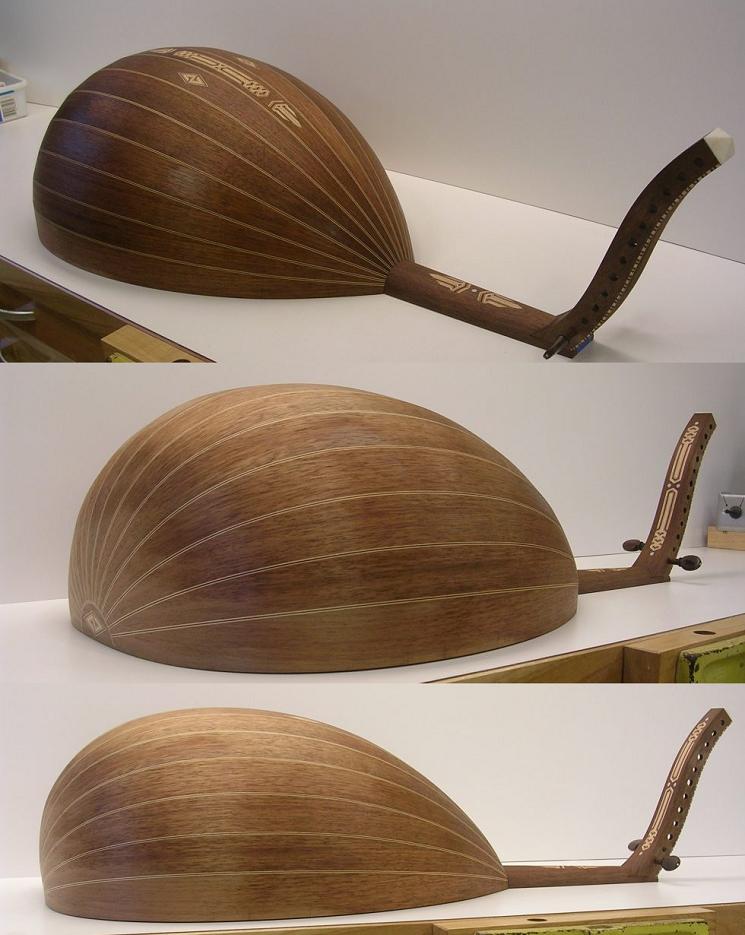

Latest update: neck shaped, neck attached to bowl, pegbox attached to neck.
Looking like an oud!
|
|
|
Peyman
Oud Junkie
Posts: 496
Registered: 7-22-2005
Member Is Offline
Mood: Mahoor
|
|
Wow, amazing as usual...
|
|
|
gilgamesh
Oud Junkie
Posts: 206
Registered: 10-4-2007
Member Is Offline
Mood: in the mood
|
|
Piiiou Jameel!! B...B...Beautiful! I mean like an aoud, like a Nahat
|
|
|
paulO
Oud Junkie
Posts: 531
Registered: 9-8-2004
Location: California
Member Is Offline
Mood: Utz
|
|
Lovely work guy, very understated and elegant. Way to go.
Regards..PaulO
|
|
|
abusin
Oud Junkie
Posts: 442
Registered: 3-23-2006
Location: Manchester England
Member Is Offline
Mood: Ya Fuadi La Tasal
|
|
Hi Mike, thats an elegant looking oud my friend I hope it brings you more luck and
prosperity for the new year, you deserve it all buddy for creating this outstanding community
Jameloo the man, another gem in your crown and tis one is a big diamond one. If I get some of Mike's luck at poker I be next one your customers list
By the way Jameel I think you're a master of photography too specially oud one, I always liked your clear and detailed photos, thanks a million
man.
best regards to you all,
Awad
|
|
|
Mike
Super Administrator
Posts: 1568
Registered: 12-3-2002
Location: California, USA
Member Is Offline
Mood: Happy
|
|
Bracing
Jameelo decided to build a go-bar clamping deck to do the bracing. It allowed him to have access to the edges to clean off any excess glue. In a
nutshell, he just presses the glued brace into position, holds for a moment, then springs the bars into position. No need to fiddle with clamps. Good
stuff.
|
|
|
Jonathan
Oud Junkie
Posts: 1582
Registered: 7-27-2004
Location: Los Angeles
Member Is Offline
Mood: No Mood
|
|
Jameel, your work inspires me so much--I look forward to each post on this thread as if the oud were my own.
About the go bars--
What type of wood is that? I've seen go-bars that can be ordered, made out of synthetic material, but it looks like you are using real wood (almost
looks like walnut). Do that work just as well, or do you think it is worth ordering the synthetic go-bars?
Mike, you are a lucky man.
|
|
|
Jameel
Oud Junkie
Posts: 1672
Registered: 12-5-2002
Member Is Offline
Mood: No Mood
|
|
Thanks everybody! This oud is taking me longer than any I've done so far, and I'm paying for it too. Best to make these things quickly. Letting parts
sit about while we do our "real" day-to-day work is not wise. Parts that I fit this summer are now too loose, even though I keep my shop conditioned,
and the humidity always stays within 20% +/-. Maybe that's too much. In a perfect world our shops are always 50% humidity, right?
Anyways, rant officially over!
Jonathan, I feel the same about your posts. I enjoy them. It seems you are a lot faster than me. Maybe I'm too tedious? I almost feel like making
rustic furniture for a while to give the brain a rest.
The go bars are oak and some other grainy wood. I just grabbed a board from my shelf that looked relatively straight-grained and started ripping. I
think the best wood is ash, since it's springy but strong. The square cross section is probably not the best since it's a bit squirley depending on
how it wants to twist around, but I wanted to get this done. I'll probably make some nicer ones eventually. I've read about guys using fiberglass kite
spars. That seems like a good idea. I hate buying this kind of stuff from lutherie houses since they usually gouge you. The big box store here has
fiberglass rods for marking the edges of your driveway--for the snow plow guy--can't imagine you could get those in your area! But they are like $2
each. That's like $100 for 50 bars. Too much! The wood works fine. In fact, I think a real good choice would be a nice straight thin branch since the
grain is guaranteed straight. There's probably a lot of info on the web about go-bars. This is really a quick and dirty one I made.
EDIT: I should mention that the top of the deck should be Baltic Birch plywood or a double layer of MDF or softwood ply. A single layer of 3/4" MDF
is too weak. I had to clamp a 2x4 to the top once all the bars were in place. That's a lot of pressure!! It was deflecting like 1" over 20".
I found some fiberglass rods here: http://www.intothewind.com/shop/Repair_and_Kitemaking/Fiberglass_Ro...
way cheaper than lmii or stewmac
|
|
|
Melbourne
Oud Junkie
Posts: 354
Registered: 10-9-2006
Location: Mlebourne, Australia
Member Is Offline
Mood: راحة الأرواح
|
|
Lovley work and lovley workshop......
and what caught my attention is the view out the window....It's so beautiful, and inspiring.
I'm sitting here typing this post with 42 degree heat pouring through my window. I'm not a big fan of the heat
|
|
|
excentrik
Oud Junkie
Posts: 291
Registered: 5-19-2004
Location: Refugee Status...
Member Is Offline
Mood: Now Here, Nowhere...
|
|
wow- jameel- your so "crafty" with the photos too- making it look easy, its like "the saw goes right here and watch as the oud comes alive!" like sea
monkeys- haha- beautiful work and a happy new year
tarik
|
|
|
Jonathan
Oud Junkie
Posts: 1582
Registered: 7-27-2004
Location: Los Angeles
Member Is Offline
Mood: No Mood
|
|
Jameel, your ouds take longer because they are masterpieces. Insallah, they will be revered for generations to come.
Thanks for the tips on the gobars. I have to start building my platform.
|
|
|
Jesse Frank
Oud Lover
Posts: 23
Registered: 9-17-2007
Location: North Florida
Member Is Offline
Mood: No Mood
|
|
Great photos. Looks chilly out there. Are you using hide glue for the braces?
|
|
|
Jameel
Oud Junkie
Posts: 1672
Registered: 12-5-2002
Member Is Offline
Mood: No Mood
|
|
Thanks Tariq and Jonathan.
I didn't use hide glue for these braces. But what a perfect way to use hide glue. With regular clamps, almost impossible before it gels, but with
these, you can press the brace in place then get the bars in position in a few seconds.
|
|
|
Jameel
Oud Junkie
Posts: 1672
Registered: 12-5-2002
Member Is Offline
Mood: No Mood
|
|
| Quote: | Originally posted by Melbourne
Lovley work and lovley workshop......
and what caught my attention is the view out the window....It's so beautiful, and inspiring.
I'm sitting here typing this post with 42 degree heat pouring through my window. I'm not a big fan of the heat |
I'll trade you. I'm so tired of walking to my shop like a penguin on ice. I can't count the times I almost bit the dust.
|
|
|
Jesse Frank
Oud Lover
Posts: 23
Registered: 9-17-2007
Location: North Florida
Member Is Offline
Mood: No Mood
|
|
Cool! I forgot to add that the subject of the photos looks great, too. Outstanding!
|
|
|
paulO
Oud Junkie
Posts: 531
Registered: 9-8-2004
Location: California
Member Is Offline
Mood: Utz
|
|
Jameel, what can I say, but thanks for all the updates -- I appreciate the artistry involved in the building of the insturments as much as the
finished product. Good with the ice dancing
Happy New Year...Paul
|
|
|
Melbourne
Oud Junkie
Posts: 354
Registered: 10-9-2006
Location: Mlebourne, Australia
Member Is Offline
Mood: راحة الأرواح
|
|
Jameel - done deal!
One condition - the trade in comes with all the skills, artistry and craftsmanship
Happy New Year!
samer
|
|
|
Mike
Super Administrator
Posts: 1568
Registered: 12-3-2002
Location: California, USA
Member Is Offline
Mood: Happy
|
|
More progress....
Braces are set, pickguard and bridge are done...
Next came a decision on the pickguard design. After a number of emails back and forth...thanks for the patience Jameelo...we were in between these
two.
Finally, we decided to go with a design that is on Hamza el-Dinn's oud.

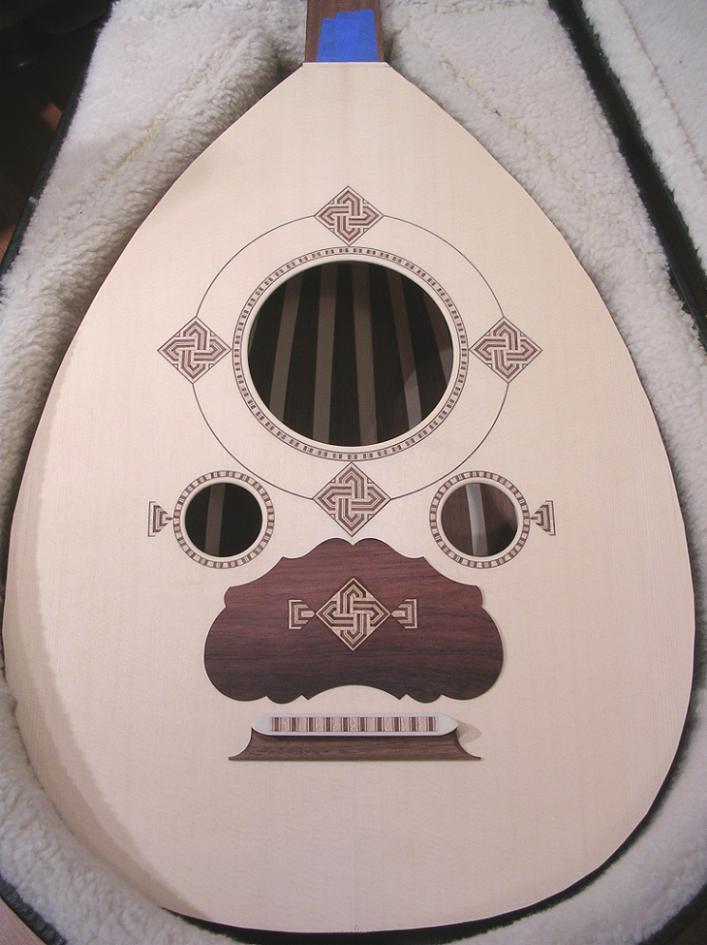

Here's a shot of the pickguard (this is the backside of it) and completed bridge, followed by a frontal shot of the soundboard.
|
|
|
maker
Oud Addict
Posts: 43
Registered: 7-9-2006
Member Is Offline
Mood: No Mood
|
|
Hello Mike
Working very, very wonderful l
I want to know about the thickness soundboard and the thicknes for bridge and High
thanks
|
|
|
SamirCanada
Moderator
Posts: 3404
Registered: 6-4-2004
Member Is Offline
|
|
Ya walad!!!
that simply gorgeous Jameel keep it up.
your fantastic
|
|
|
Jameel
Oud Junkie
Posts: 1672
Registered: 12-5-2002
Member Is Offline
Mood: No Mood
|
|
Thanks fellas.
Got the pickguard and bridge glued on today.
It's coming together....
|
|
|
Melbourne
Oud Junkie
Posts: 354
Registered: 10-9-2006
Location: Mlebourne, Australia
Member Is Offline
Mood: راحة الأرواح
|
|
Is it me - or is the central soundhole enormous? It looks fantastic and it really dominates the entire sound board.
Mike is going to be one lucky guy owning this oud!
|
|
|
